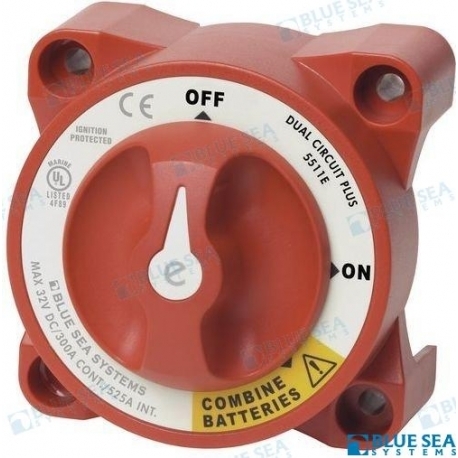

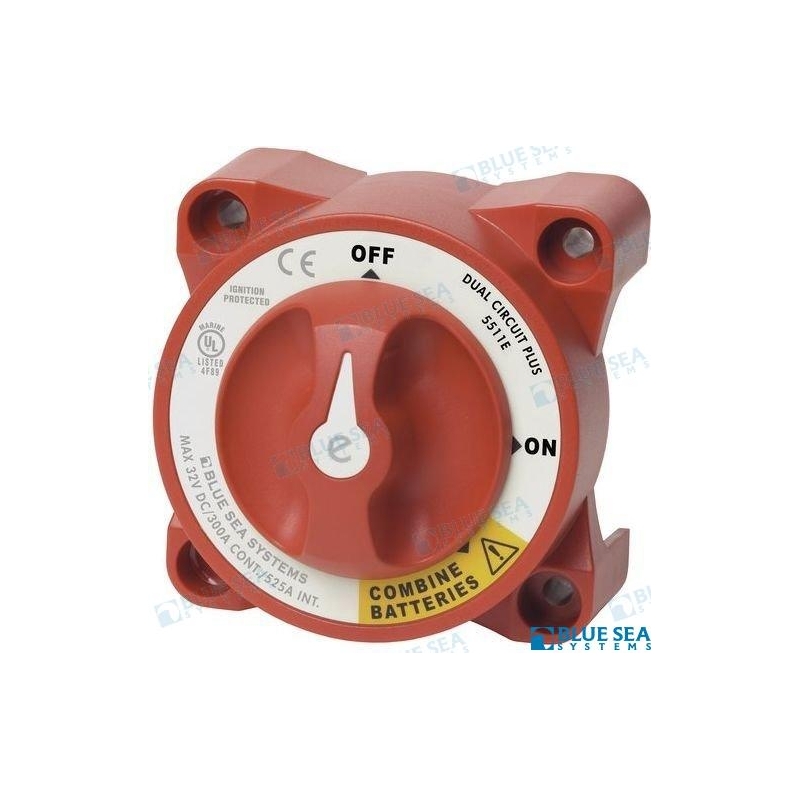

INTERRUPTOR DE BATERIA

Ver maior

INTERRUPTOR DE BATERIA

Refª BS5511E

Condição Novo

Battery Switch

Em Stock | Entrega imediata

Mais informação

- Make-before-break contact design allows switching between battery banks without power interruption
- Ignition protected safe for installation aboard gasoline-powered boats
- Case design allows surface or rear panel mounting
- Meets American Boat and Yacht Council (ABYC) requirements for battery switches

Specifications

Cranking Rating: 10 sec.	1,000 Amps
Intermittent Rating: 5 min.	525 Amps
Continuous Rating	350 Amps
Maximum Voltage Rating	32 Volts DC
Terminal Stud Size	3/8"-16 (M10)
Terminal Stud Torque	140 in-lb (15.82 NÂ·m) max.
Mounting Holes	Accept 1/4" (M6) Screw
Cable Size to Meet Ratings	4/0 AWG (95mmÂ²)
Cable Clearance For 4/0 AWG Cables	1.10" (27.9mm)
Weight Lb (Kg)	1.16 (0.53)

Certifications & Agency Standards

CE Marked
UL Listed - UL 1107 electric power switches
Meets American Boat and Yacht Council (ABYC) requirements
Meets UL 1500 and SAE J1171 external ignition protection requirements
