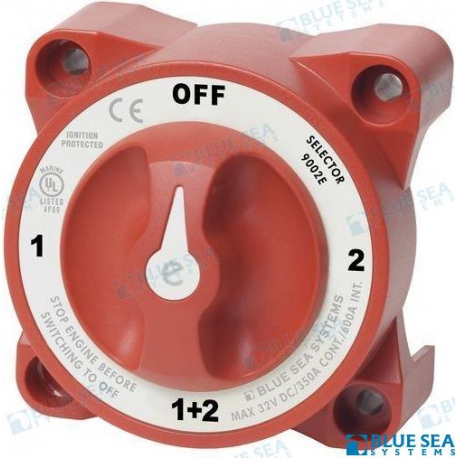

DESCONECTADOR DE BATERIA 4 POS

Ver maior

DESCONECTADOR DE BATERIA 4 POS

Refª BS9002E

Condição Novo

Switch Battery 4 Way

Envio em 3 a 4 dias úteis

Mais informação

Includes AFD (Alternator Field Disconnect)

Make-before-break contact design allows switching between battery banks without power interruption
Ignition protected—safe for installation aboard gasoline powered boats
Case design allows surface or rear panel mounting
Meets American Boat and Yacht Council (ABYC) requirements for battery switches

Specifications

Cranking Rating: 10 sec.	2,000 Amps
Intermittent Rating: 5 min.	600 Amps
Continuous Rating	350 Amps
Maximum Voltage Rating	48 Volts DC
Terminal Stud Size	3/8"-16 (M10)
Terminal Stud Torque	140 in-lb (15.82 N·m) max.
Mounting Holes	Accept 1/4" (M6) Screw
Cable Size to Meet Ratings	4/0 AWG (95mm²)
Cable Clearance For 4/0 AWG Cables	1.10" (27.9mm)
Weight Lb (Kg)	1.15 (0.52)

Certifications & Agency Standards

CE Marked
UL Listed - UL 1107 electric power switches
Meets American Boat and Yacht Council (ABYC) requirements
Meets UL 1500 and SAE J1171 external ignition protection requirements
