PAINEL 8 INT. HORIZONTAL

Refª BS8261

Condição Novo

Panel Waterproof 12Vdc 8 Pos. Horz.

Mais detalhes

Mais informação

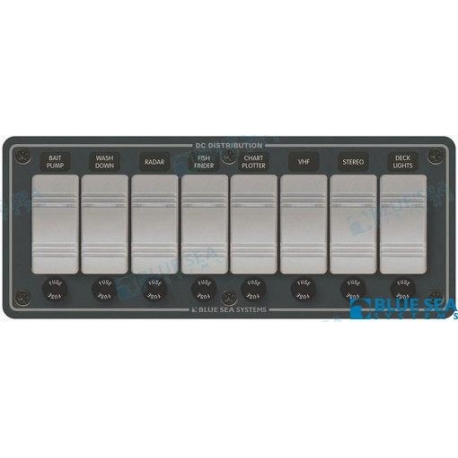

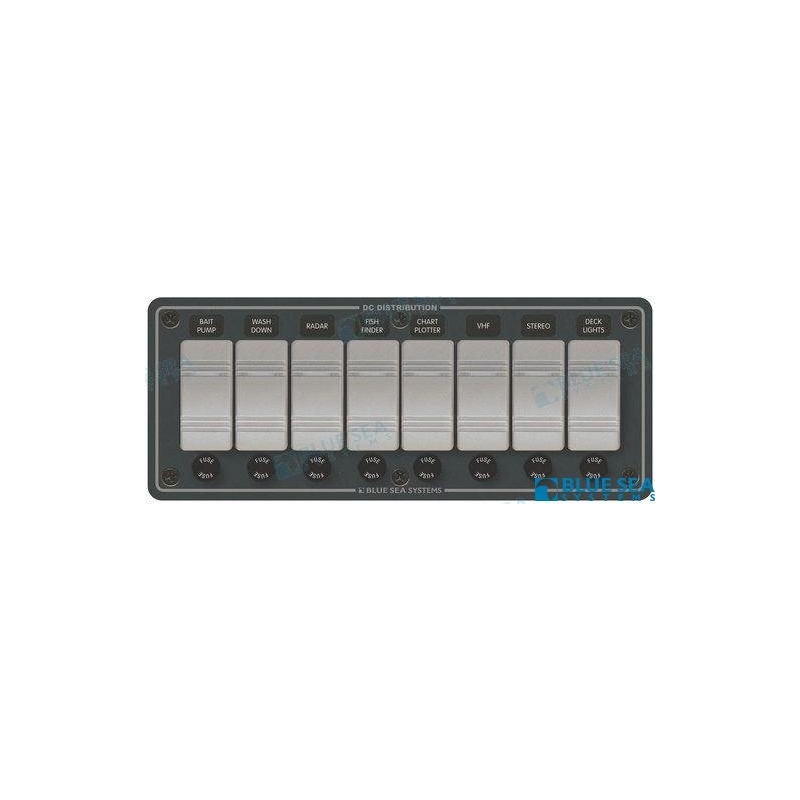

Water Resistant Fuse Panel 8 Position-Slate Gray
PN: 8261

Features

Designed for flybridge and open cockpit applications

Water resistant

Water resistant fuse holders accept commonly available AGC (Fast Acting) and MDL (Slow Blow) glass fuses

Installed switch is ON-OFF

Eight positions, eight installed Contura switches

Countersunk mounting holes throughout

Heavy 1/8"aluminum material

Two-part polyurethane slate gray finish

Water resistant Contura switches

"ON" indicating LEDs embedded in switch

Includes set of 60 small format common DC labels

Compact labels minimize panel space requirements

Designed for installations where height restrictions are present

Watertight mounting gasket

Mil-Spec chemical treatment via immersion to protect every surface detail from corrosion

Detailed installation instructions and cutout template

NOTE: Water resistant panel labels are not backlightable

Specifications

Voltage	12 or 24 Volts DC
Switch Rating	20 Amperes @ 12 Volts DC
	15 Amperes @ 24 Volts DC
Switch LED Amperage Draw	18 Milliamperes each
Fuse Holder Rating	20 Amperes maximum
Panel Cumulative Rating	45 Amperes
Height	3.75" (283.00mm)
Width	9.37" (133.35mm)
