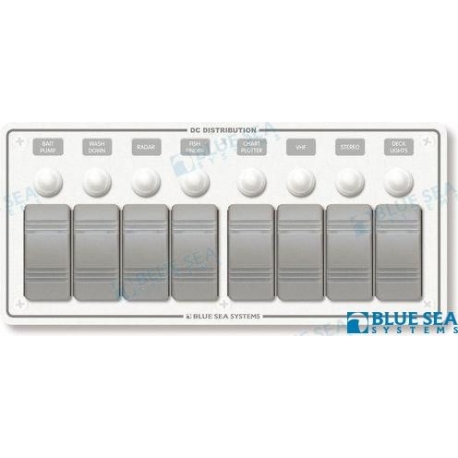

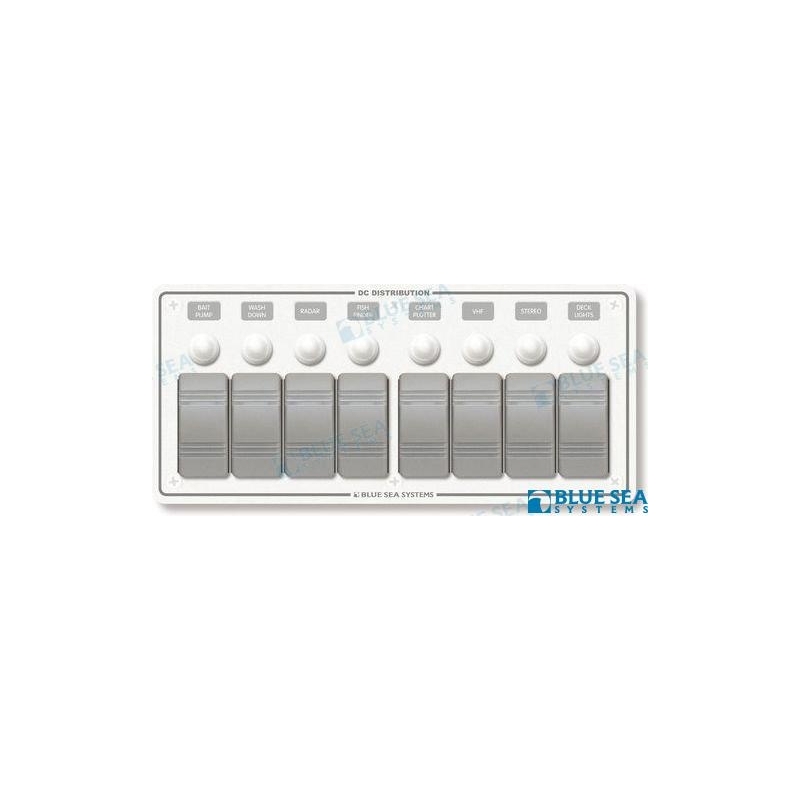

PAINEL WP 8 INT. HORIZONTAL

Refª BS8271

Condição Novo

Panel Waterproof 12Vdc 8 Breaker Horz.

Mais detalhes

Mais informação

Water Resistant Circuit Breaker Panel 8 Position-White
PN: 8271

Features

Designed for flybridge and open cockpit applications

Water-resistant

Rated IP66 - "Use on Shipdecks"

Ignition-protected - safe for installation aboard gasoline-powered boats
Meets UL 1500 and ISO 8846 ignition protection requirements

Installed switch is ON-OFF

Eight positions, eight installed Contura switches

Push Button circuit breaker with waterproof boot

Countersunk mounting holes throughout

Heavy 1/8"aluminum material

Two-part polyurethane white finish

Water-resistant Contura switches

"ON" indicating LEDs embedded in switch

Watertight mounting gasket

Mil-Spec chemical treatment via immersion to protect every surface detail from corrosion

Completely wired and ready to install

Includes set of 60 common DC labels

Detailed installation instructions and cutout template

NOTE: Water-resistant panel labels are not backlight-able

Specifications

Voltage	12 or 24 Volts DC
Switch Rating	20 Amperes @ 12 Volts DC
	15 Amperes @ 24 Volts DC
Switch LED Amperage Draw	18 Milliamperes each
Circuit Breaker Rating	15 Amperes
Panel Cumulative Rating	45 Amperes
Height	4.25" (107.95mm)
Width	9.37" (238.00mm)
