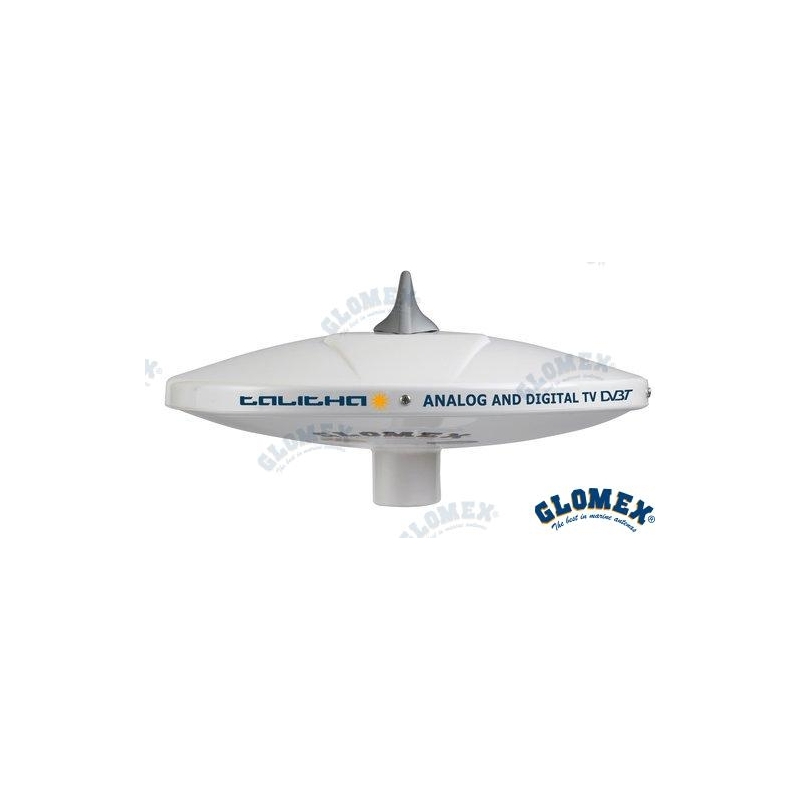

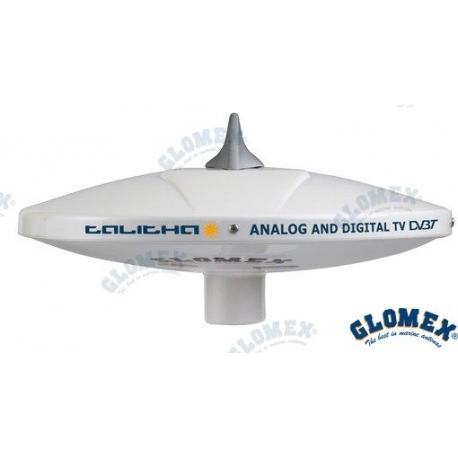

ANTENA TV TALITHA AGC V9125 250mm

The Talitha has evolved into the Talitha AGC to make life easier with the new and innovative automatic gain control amplifier.

Thanks to this new amplifier, you only have to turn on the TV and the antenna AGC will adjust by itself the gain of the TV signal to ensure the best possible reception of television broadcasts.
With conventional amplifiers, you have to manually adjust the TV signal gain by lowering or increasing the gain based on the signal strength.

With the new Talitha AGC, everything will happen automatically and the innovative amplifier can be placed in a hidden location inside the boat.

SUPPLIED ACCESSORIES:

• 50023/14 AUTOMATIC GAIN CONTROL AMPLIFIER
• 20M COAXIAL CABLE to connect the antenna to the amplifier

• SET CORD to connect the amplifier to the TV

• V9144 F-MALE GOLD PLATED CONNECTORS (2 PCS)

ANTENNA DIAMETER	10''
ANTENNA HEIGHT	5.9"
BASE DIAMETER	16''
ANTENNA WEIGHT	14.29 oz
RADOME MATERIAL	U.V. resistant ASA
ANGLE OF RECEPTION	360°
POLARIZATION	Horizontal / Vertical
IMPEDANCE	75 ohms
FREQUENCY RANGE	40/890 MHz
GAIN AVERAGE	26 dB
NOISE FACTOR	2.2 dB
POWER CONSUPTION	20 mA
POWER SUPPLY	12/24 Vdc
AUTOMATIC GAIN	Yes
TV SET MAX	2
TERMINATION	F female
CONNECTOR SUPPLIED	F male gold plated connector (V9144)
