> Acessórios>Electricidade e Painéis>Desconectores de Bateria>INTERRUPTOR DE BATERIA HD 500A 2 P.

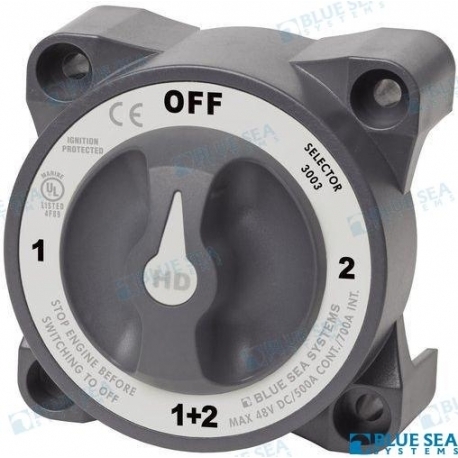

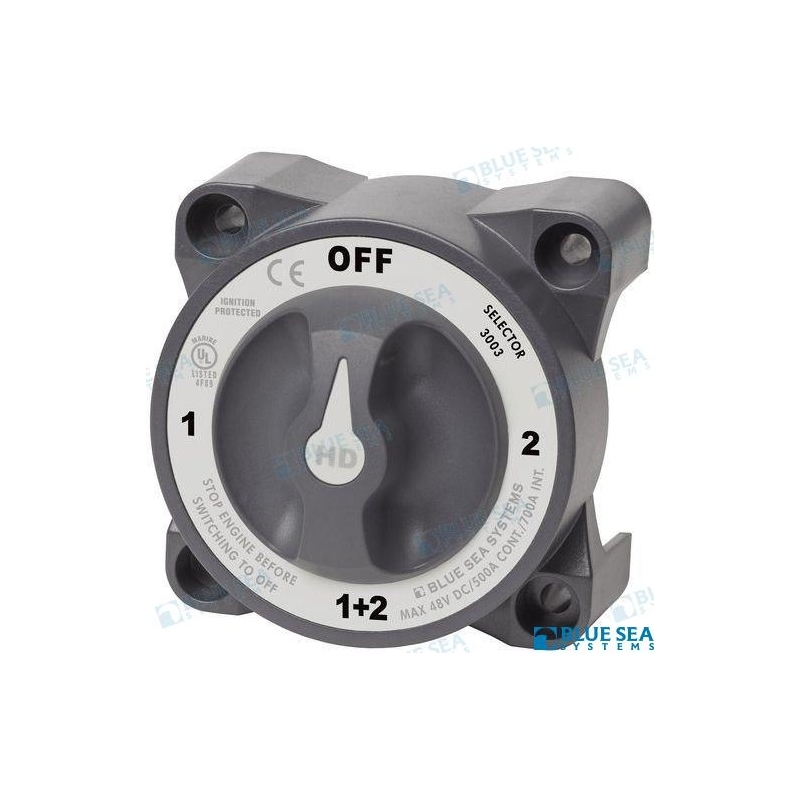

INTERRUPTOR DE BATERIA HD 500A 2 P. Ver maior

INTERRUPTOR DE BATERIA HD 500A 2 P.

BS3003

Novo

Switch Battery Hd Selector W/Afd

Mais detalhes

Envio em 3 a 4 dias úteis

196,92€

Mais informação



  •
    •

        Includes AFD (Alternator Field Disconnect)

      • Meets American Boat and Yacht Council (ABYC) requirements for battery switches
      • Ignition protected—safe for installation aboard gasoline powered boats
      • Case design allows surface or rear panel mounting
      • Accepts two 4/0 AWG (95mm²) battery cables

      • Specifications

      Cranking Rating: 10 sec.2,750 Amps
      Intermittent Rating: 5 min.700 Amps
      Continuous Rating500 Amps
      Maximum Voltage Rating48 Volts DC
      Terminal Stud Size1/2" (M12)
      Terminal Stud Torque220 in-lb (24.86 N·m) max.
      Mounting HolesAccept 1/4" (M6) Screw
      Cable Size to Meet Ratings4/0 AWG (95mm²)
      Cable Quantity to Meet RatingsTwo Cables / Terminal
      Cable Clearance For 4/0 AWG Cables1.10" (27.9mm)
      Weight Lb (Kg)1.25 (0.57)

      Certifications & Agency Standards

      •  CE Marked
      • UL Listed - UL 1107 electric power switches
      • Meets American Boat and Yacht Council (ABYC) requirements
      • Meets UL 1500 and SAE J1171 external ignition protection requirements

      Product Line
