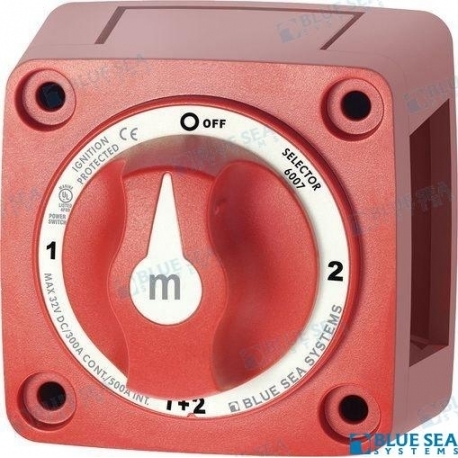

MINI INT. SELETOR DE BATERIA

Refª BS6007

Condição Novo

Switch Battery Mini Selector

Envio em 3 a 4 dias úteis

(Mini) Battery Switch Single Circuit ON/OFF

Ignition protected—safe for installation aboard gasoline powered boats

Case design allows surface, front panel, or rear panel mounting

Isolating cover with snap-on sections protects rear contacts

Cranking Rating: 10 sec.	1,500 Amps
Intermittent Rating: 5 min.	500 Amps
Continuous Rating	300 Amps
Maximum Voltage Rating	48 Volts DC
Terminal Stud Size	3/8"-16 (M10)
Terminal Stud Torque	120 in-lb (13.56 N·m) max.
Mounting Holes	Accept #10 Screw
Cable Size to Meet Ratings	4/0 AWG (95mm²)
Cable Clearance For 4/0 AWG Cables	1.12" (28.4mm)
Weight Lb (Kg)	0.77 (0.35)
