> Acessórios>Electricidade e Painéis>Desconectores de Bateria>INTERRUPTOR DE BATERIA HD 600A
INTERRUPTOR DE BATERIA HD 600A Ver maior

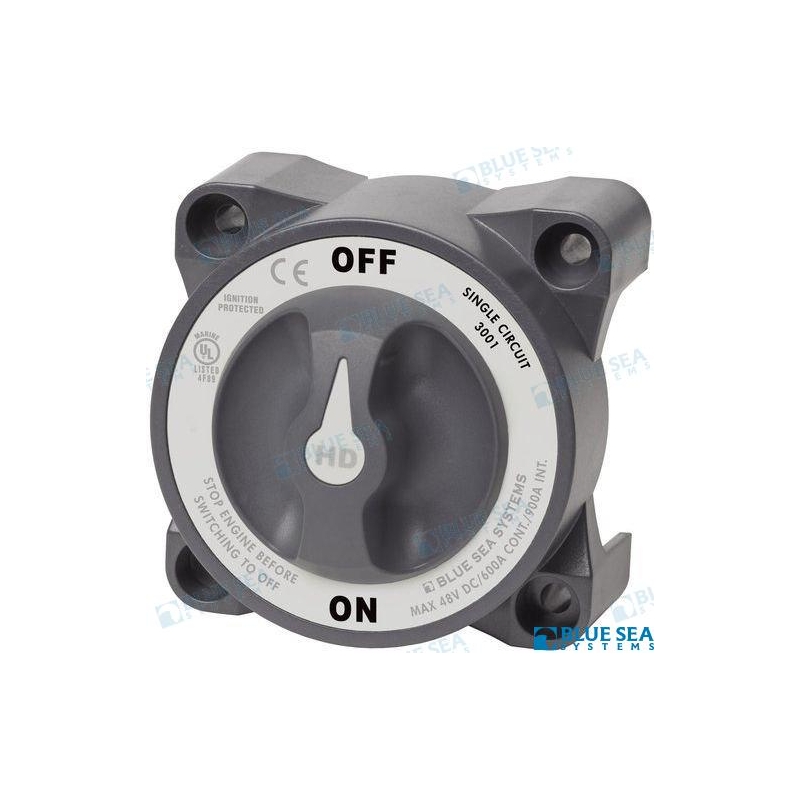

INTERRUPTOR DE BATERIA HD 600A

BS3001

Novo

Main switch battery heavy duty

Mais detalhes

Envio em 3 a 4 dias úteis

188,82€

Mais informação

- Order number: BS3001, - Order number: BS3003



  •

    Includes AFD (Alternator Field Disconnect)

  • Meets American Boat and Yacht Council (ABYC) requirements for battery switches
  • Ignition protected—safe for installation aboard gasoline powered boats
  • Case design allows surface or rear panel mounting
  • Accepts two 4/0 AWG (95mm²) battery cables

Specifications

Cranking Rating: 10 sec.2,750 Amps
Intermittent Rating: 5 min.900 Amps
Continuous Rating600 Amps
Maximum Voltage Rating48 Volts DC
Terminal Stud Size1/2" (M12)
Terminal Stud Torque220 in-lb (24.86 N·m) max.
Mounting HolesAccept 1/4" (M6) Screw
Cable Size to Meet Ratings4/0 AWG (95mm²)
Cable Quantity to Meet RatingsTwo Cables
Cable Clearance For 4/0 AWG Cables1.10" (27.9mm)
Weight Lb (Kg)1.30 (0.59)

Certifications & Agency Standards

  •  CE Marked
  • UL Listed - UL 1107 electric power switches
  • Meets American Boat and Yacht Council (ABYC) requirements
  • Meets UL 1500 and SAE J1171 external ignition protection requirements
