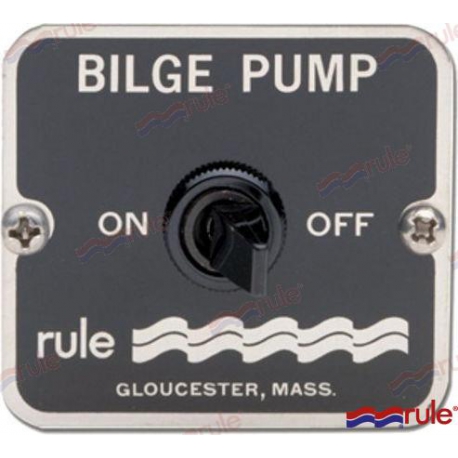

PAINEL DE INTERRUPTORES 2P

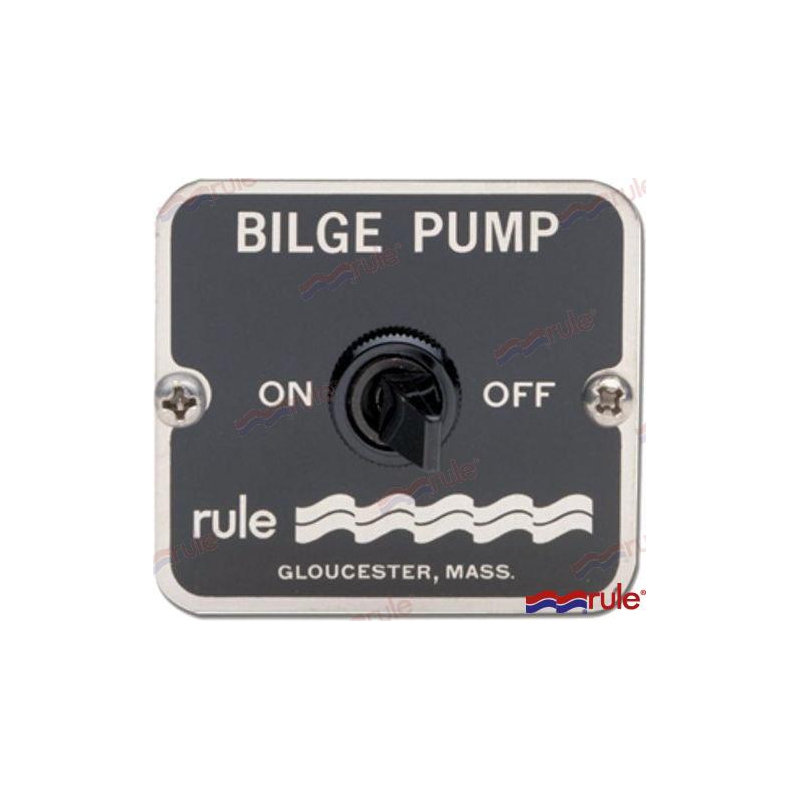

Rule Bilge Switches are simple, classic-looking on/off switches with enamel-coated stainless steel finish. These switches are simple enough to screw onto a boat dash and then be wired up directly to the battery. The switch itself uses crimped spade type electrical connectors.

The Rule Bilge Pump Switch Model 49 is the perfect pump switch for smaller boats that want a simple on/off system to run their boat's bilge pump. The 2-way panel switch does not come with a fuse holder and therefore requires an inline fuse holder which can be purchased through Blue Sea (see related products).

For 3 wire Auto Bilge Pumps, essentially pumps with integrated float or sensor swithes, choose one of our 3-Way Panel Swiches (On-Off-(On))

Features

• Suits 12v - 24v power supply.
• Two-Way Switch Panel: 'On' and 'Off'.
• Marine resistant stainless steel switches with enamel finish.
• Meets safety need for bilge pumps to be independently switched.
• Come with 2 spade electrical connectors (1mm²) and 2 attachment screws (5mm) included for installation.
• Wiring diagram and instructions included.

Specifications

• Dimensions: 57mm wide, 50mm high.
• Power supply: 12-24v
• 2 x screws required (5mm i.d).
• Max Amps (DC): 20 (12V), 10 (24V)
• Cable: 1mm² tinned marine wire.
• Actual Weight: 0.06 Kg.

1. >span class="fifth-color">Cut a minimum hole in the dash of 35mm x 24mm.
2. Take the 1mm² electrical wire (sold separately) and strip the wire back 1/4" before soldering and crimping on the spade connections.
4. >span class="fifth-color">Wire an inline fuse into the wire leading to the positive terminal as per below
