> Acessórios>Electricidade e Painéis>Interruptores e Painéis>RELÉ DE CARGA MAGNÉTICA 12V

Produto sob consulta! Por favor contacte-nos.

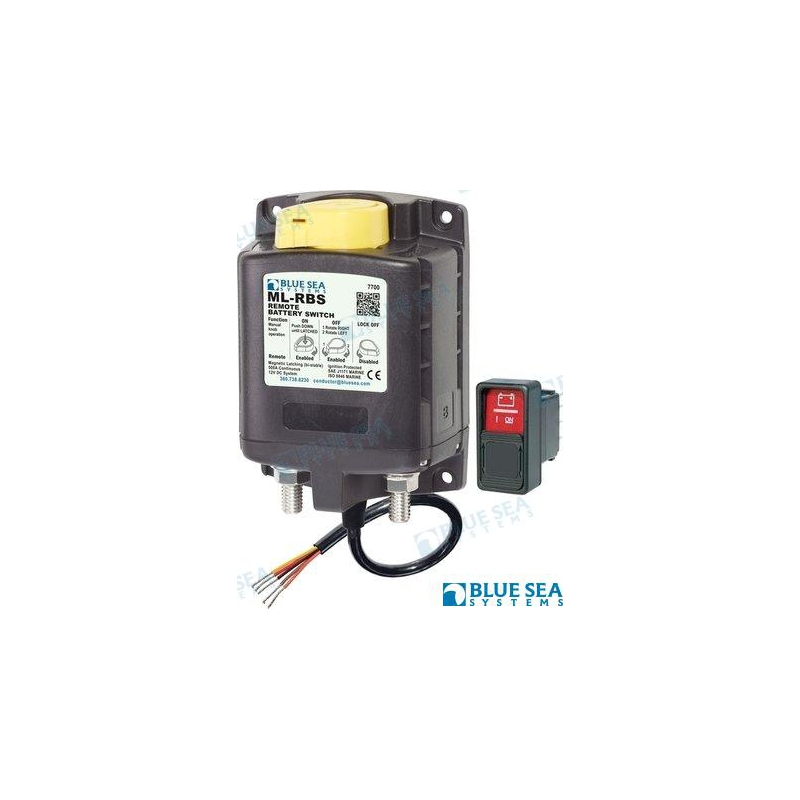

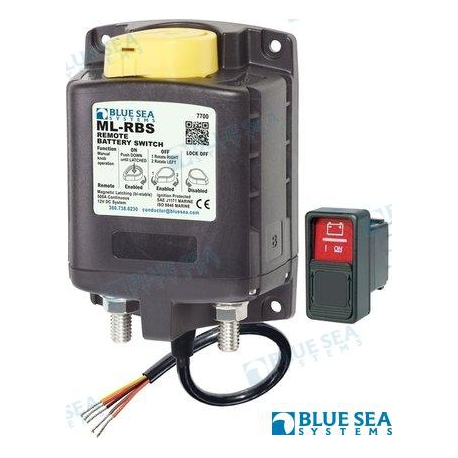

RELÉ DE CARGA MAGNÉTICA 12V

BS7700

Novo

Remote controlled battery switch also manual switch

Mais detalhes

Mais informação

. Capacity: - Continuous 300A - Intermittent 500A - Voltage 12, - Order number: BS7700, - Remote controlled battery switch for inboard gasoline and diesel engines, - Reduce long wires through the boat. Option manual switch, - Capacity: - Continuous 300A - Intermittent 500A - Voltage 24, - Order number: BS7702

  • Includes ML-Series Remote Control Contura Switch 2145
  • Manual control switch provides an added level of safety allowing control with or without power, and offering "Locked Off" capability for servicing
  • 500 Ampere continuous rating for engine, inverter, house loads, and emergency battery combine
  • Magnetic latching draws no current in "ON" or "OFF" state, only draws current when changing state of switch
  • Silver alloy contacts provides high reliability for switching live loads
  • 3/8" -16 tin-plated copper studs for maximum conductivity and corrosion resistance
  • 7/8" (22mm) stud length accepts multiple cable terminals
  • Label recesses for circuit identification

Certifications & Agency Standards

  • Marked
  • Meets ISO 8846 MARINE and SAE J1171 MARINE external ignition protection requirements
  • Waterproof rated IP66—protected against powerful water jets
PNPackageNominal VoltageControl Circuit ConnectionRemote Control  Switch IncludedWeight  lb (kg)
7700Retail12V DCTinned Wire21451.75 (0.79)
7702Retail24V DCTinned Wire21451.75 (0.79)
