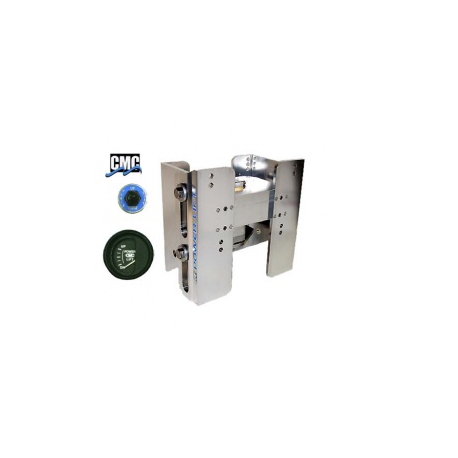

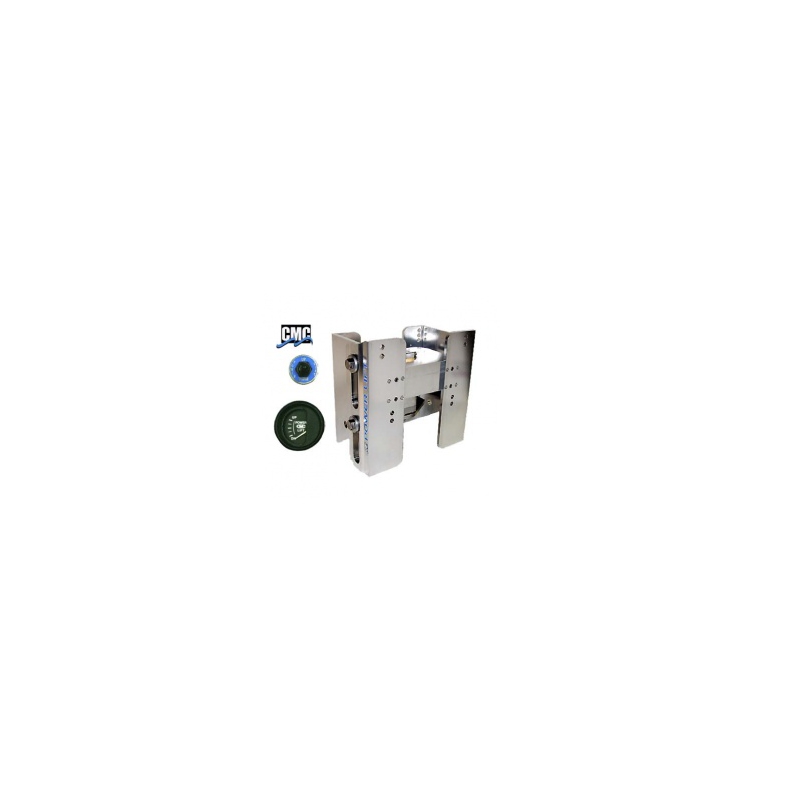

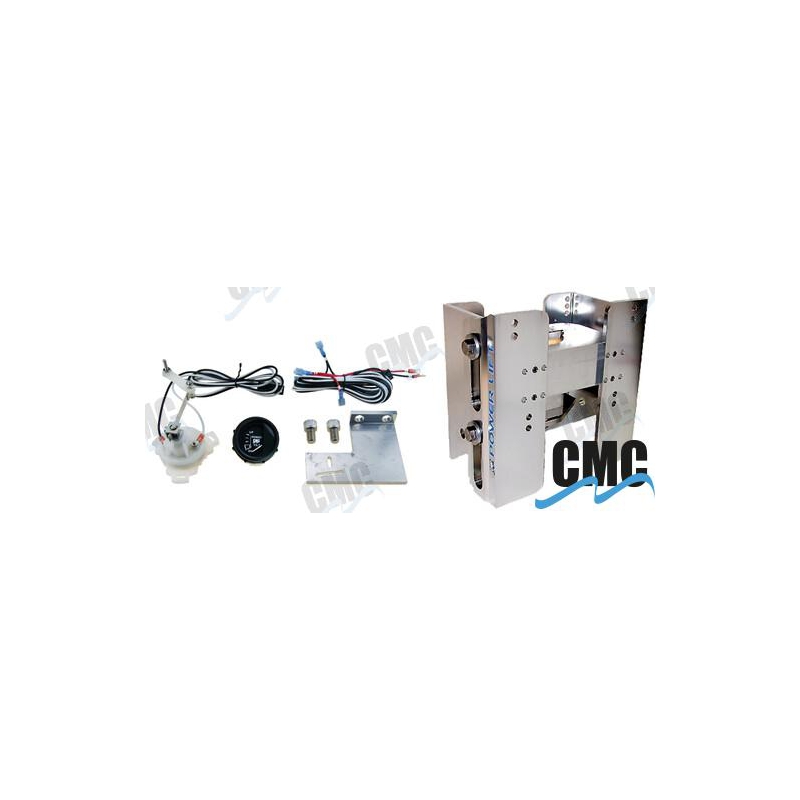

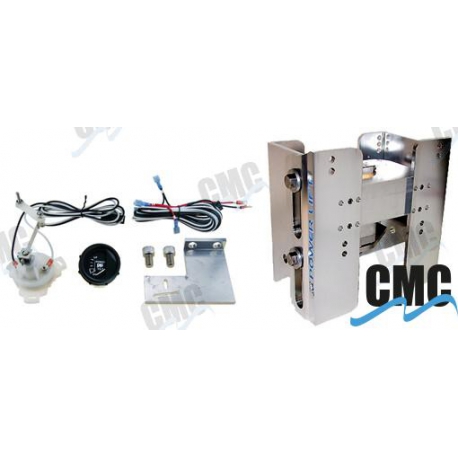

POWERLIFT CMC TO V6 OUTBOARD ENGINES CMC61001Q

The dependable, self-contained, and waterproof CMC High Speed Hydraulic Power-Lift Transom Jacks have a maximum lifting capacity of 7853 pounds of thrust, more than any other transom jack. You will have no problem lifting even a V-6 300 hp max. motor at full throttle.

The hydraulic actuator is mounted inside the structure of the power lift, yet it is fully accessible without removing the engine. There are no hoses to contain, nor will you have to contend with mounting a pump and reservoir inside your boat, as is the need with other transom jacks. The hydraulic actuator is completely self-contained with its own fluid reservoir (eliminates the need for a hydraulic tank and hoses inside the boat). It contains a permanent magnet motor for more power and constant torque. The cylinder within the actuator has twice the lifting capacity of other transom jacks on the market. It contains a no-leak seal and wiper that keeps dirt and water out of the working parts. The system is made of 100% non-ferrous material which makes it impervious to saltwater and freshwater.

The patented roller design means less friction, longer wear, less maintenance, and virtually no binding problems which are common with other transom jacks. The roller assembly contains a stainless steel 3/4" pin with aluminum-bronze alloy rollers. The roller is highly impact resistant, corrosive resistant, and has a high load-carrying capacity. This patented design virtually eliminates any chance of binding which is common with other transom jacks.

The PL-65 is rated for V-6 motors and smaller and gives you 5" of vertical travel with 1-1/2" of adjustment on the motor bracket and 1-1/2" of adjustment on the transom bracket. A total of 8" of possible adjustment.

Contact your boat manufacturer or local dealer for setback recommendations for your particular boat and also the effects adding a jack plate can have on your boat.

Features

• Full stroke in 8 seconds
• Made of 6061 T6 alloy aluminum extrusions and fastened with stainless steel fasteners
• Ideal for fresh or saltwater use
• No welds or castings to break
• Hydraulic actuator is completely self-contained
• Roller design means less friction, longer wear, less maintenance, and virtually no binding problems

Specs

• Material: Aluminum and Stainless Steel
• Capacity: V6 Motors (to 300 HP) and smaller
• Vertical Adjustment: 8"
