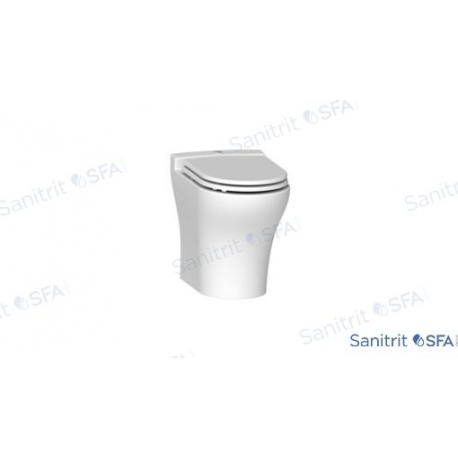

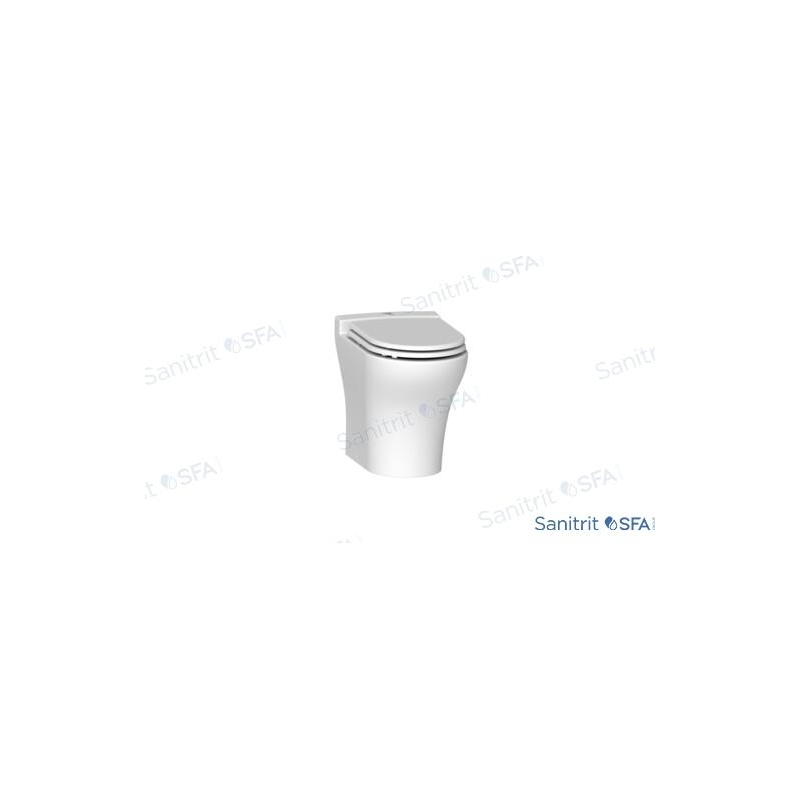

SANIMARIN EXCLUSIVE MEDIUM LUXE 24 V

Sanimarin Exclusive Medium

New sleek design short toilet.

SILENCE AND DESIGN

• Comfortable
• Contemporary design
• Quiet, acoustic pressure 52 dB(A)
• Vertical back line
• A 360° powerful flushing system
• Choice of 4 control systems

Description

Only 355 mm wide and 522 mm deep, this SANIMARIN solution with a sleek and attractive design, is comfortable and looks good, perfect for both owners and manufacturers of luxury boats. This standard height toilet comes with the latest SANIMARIN innovations such as the brand new highly efficient rinsing system.

Specifications

Pumping height

3 m

Horizontal pumping distance

30 m

Water consumption

ECO : 1,2l

NORMAL : 2,4l

Electric switch : quantity decided by the user

Water use

• Onboard freshwater (integrated solenoid valve) or outside pressurized water
• Minime pressure of supplied water 1.7 BAR
• Recommended pump flow rate 11 L/min

Electricity consumption

Cycle ECO (8 s)

12V : 0.056 Ah

24V : 0,032 Ah

Cycle NORMAL (15 s)

12V : 0.105 Ah

24V : 0.060 Ah

Electric Switch (per second)

12V : 0.007 Ah

24V : 0.004 Ah

Total time required

ECO : 8 s

NORMAL : 15 s

Electric switch : user’s choice

Current consumption

12 V (300 W) : 25 A

24 V (360 W) : 15 A

Weight

26 Kg
