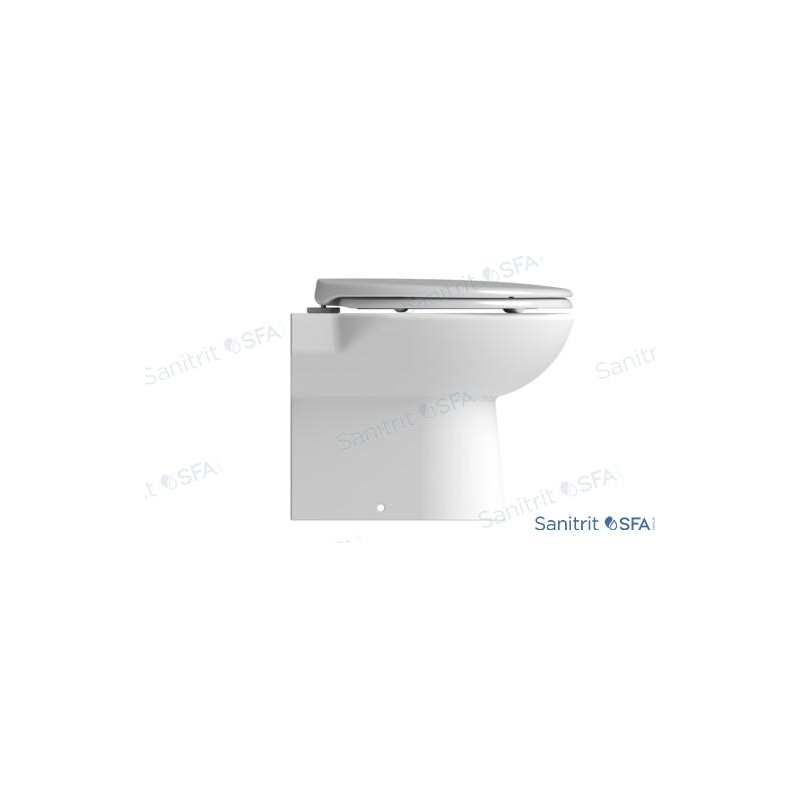

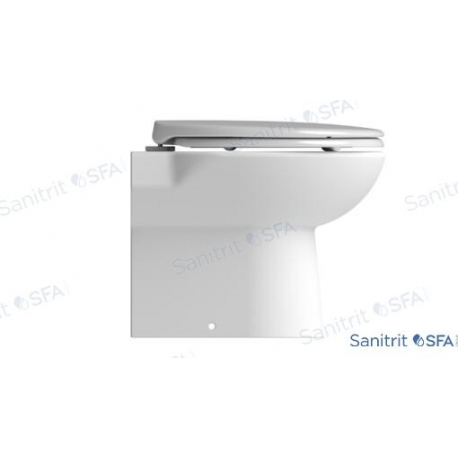

SANIMARIN 32 LUXE 12V

• Mounting on a raised step
• Vertical back line
• All the system integrated in the foot
• Connection to the pressurized water onboard
• Quiet
• Soft close seat
• Choice of 4 control systems

Description

Reliable and comfortable, just like a conventional toilet, the Sanimarin 32 can be easily installed on a vertical wall. Relatively lightweight (19 kg) and generously proportioned (370 mm high, 255 mm wide and 430 mm deep), this toilet is the ideal compromise between wellness and practicality.

Specifications

Pumping height

3 m

Horizontal pumping distance

30 m

Water consumption

ECO : 1,2l

NORMAL : 2,4 l

Electric switch : quantity decided by the user

Electricity consumption

ECO Cycle (8 s)

12V : 0.056 Ah

24V : 0,032 Ah

NORMAL Cycle (15 s)

12V : 0.105 Ah

24V : 0.060 Ah

Electric switch (per second)

12V : 0.007Ah

24V : 0.004Ah

Total time required

ECO : 8 s

NORMAL : 15 s

Electric switch : user’s choice

Current consumption

12 V (300 W) : 25 A

24 V (360 W) : 15 A

Water use

• Onboard freshwater (integrated solenoid valve) or outside pressurized water
• Minime pressure of supplied water 1.7 BAR
• Recommended pump flow rate 11 L/min

Weight

19 Kg
